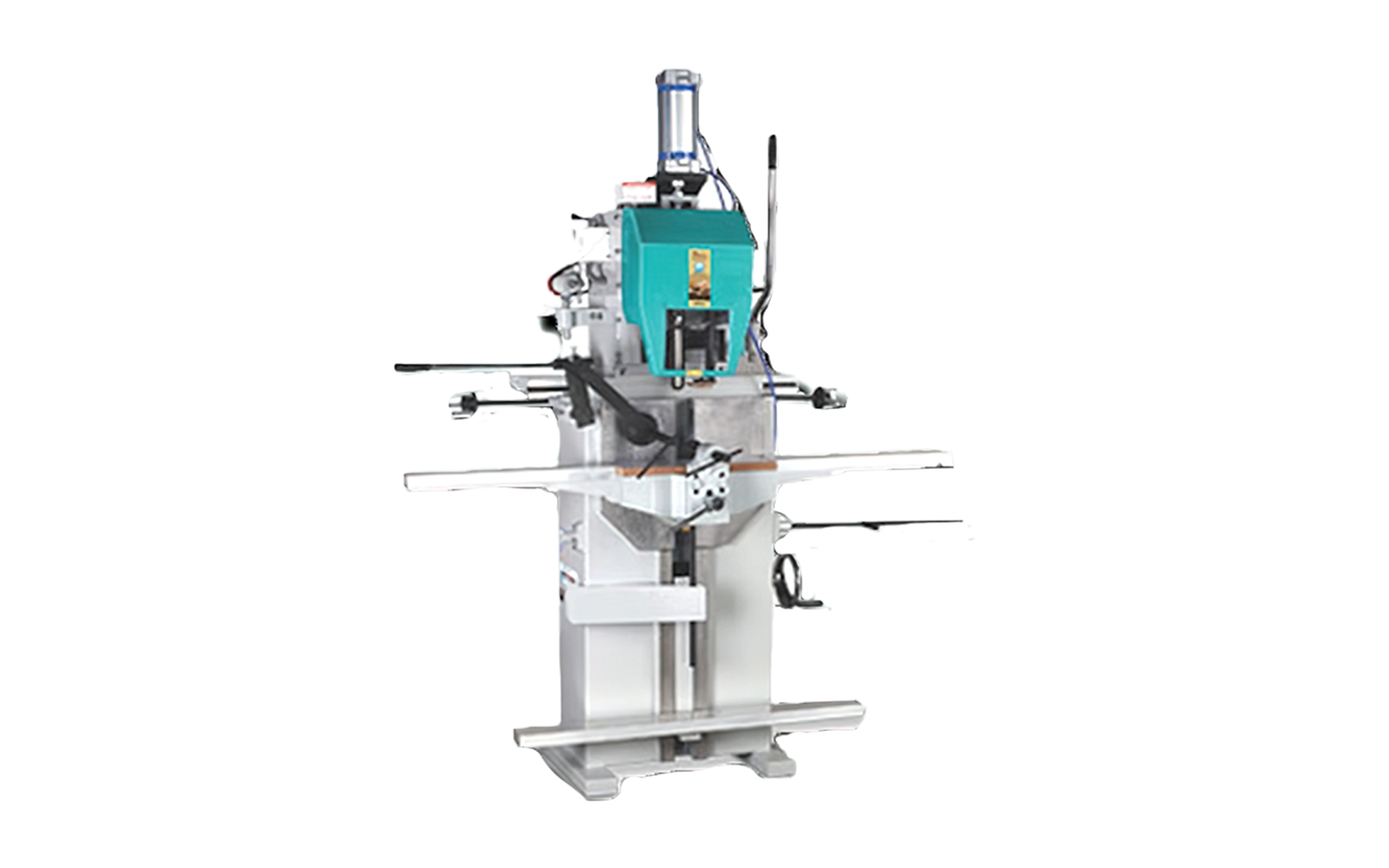

CHAIN & CHISEL MORTISER - PNEUMATIC
A combined heavy duty m/cthat allows you mortising, flexibility by replacing holding units of chain or chisel.
Two different machining operations:traditional rectangle slots using chain or square holes with sspecific chisel. Pneumatic head lowering for greater safety , precision and easy operation. Swing away table for door mortising.
| Model | J-1930 |
| mm/ inch | |
| Table size | 455 x 150 / 18" x 6" |
| Max. height of workpiece on table | 254 / 10" |
| Max. height of door or frame | 1000 / 39" |
| Max. depth of cut- Chain mortiser | 140 / 5 1/2" |
| Min depth of cut - Chain mortiser | 90 / 3 1/2" |
| Longitudinal movement of head / table | 305 / 12" |
| Table tilt - degree | 45º |
| Size of dust collection poart-dia. | 100 / 4" |
| Air pressure required (kg/cm2) | 5 to 7 |
| Electric motor (HP/RPM) | 3 / 1440 |
| Approx. Weight of machine - kg. | 475 |
