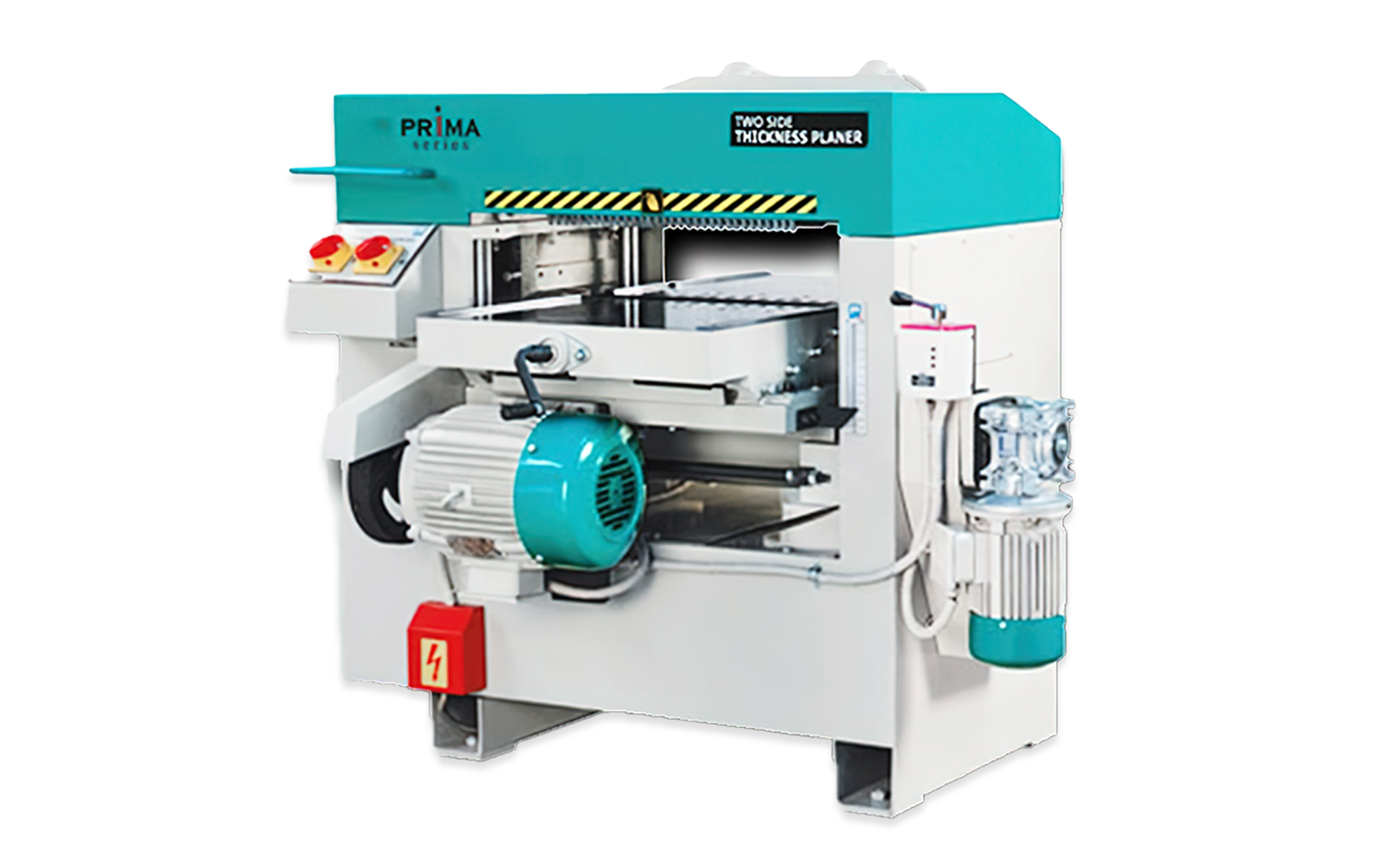

TWO SIDE THICKNESS PLANER
A heavy duty, high precision two side thIcknessing machine for higher production line work. Heavy duty with Anti kick-back mechanism, helicoidal infeed roller & steel outfeed roller with motorised up-down movement of thickness table.
| Model | J-2318 (auto) | J-2324 (auto) |
| mm / inch | mm / inch | |
| Max. planing width | 455 / 18" | 610 / 24" |
| Max.working thickness | 150 / 6" | 150 / 6" |
| Min. working thickness | 9 / 3/8" | 9 / 3/8" |
| Min. length of workpiece for thicknessing | 254 / 10" | 254 / 10" |
| Feeding speed (feet per minute) | 24 | 24 |
| Cutter block diameter | 95 / 3.75" | 95 / 3.75" |
| Cutter block speed (RPM) | 4000 | 4000 |
| Standard cutter block code no. | 3B-W | 3B-W |
| Size of Dust Collection Port-Dia. | 100 / 4" | 100 / 4" |
| Upper Roll Power required - HP/ RPM | 7.5 / 1440 | 7.5 / 1440 |
| Bottom Roll Power required - HP / RPM | 5 / 1440 | 5 / 1440 |
| Thickness Table Up-Down Power required - HP / RPM | 0.5 / 1440 | 0.5 / 1440 |
| Approx. Weight of machine - kg. | 650 | 750 |
